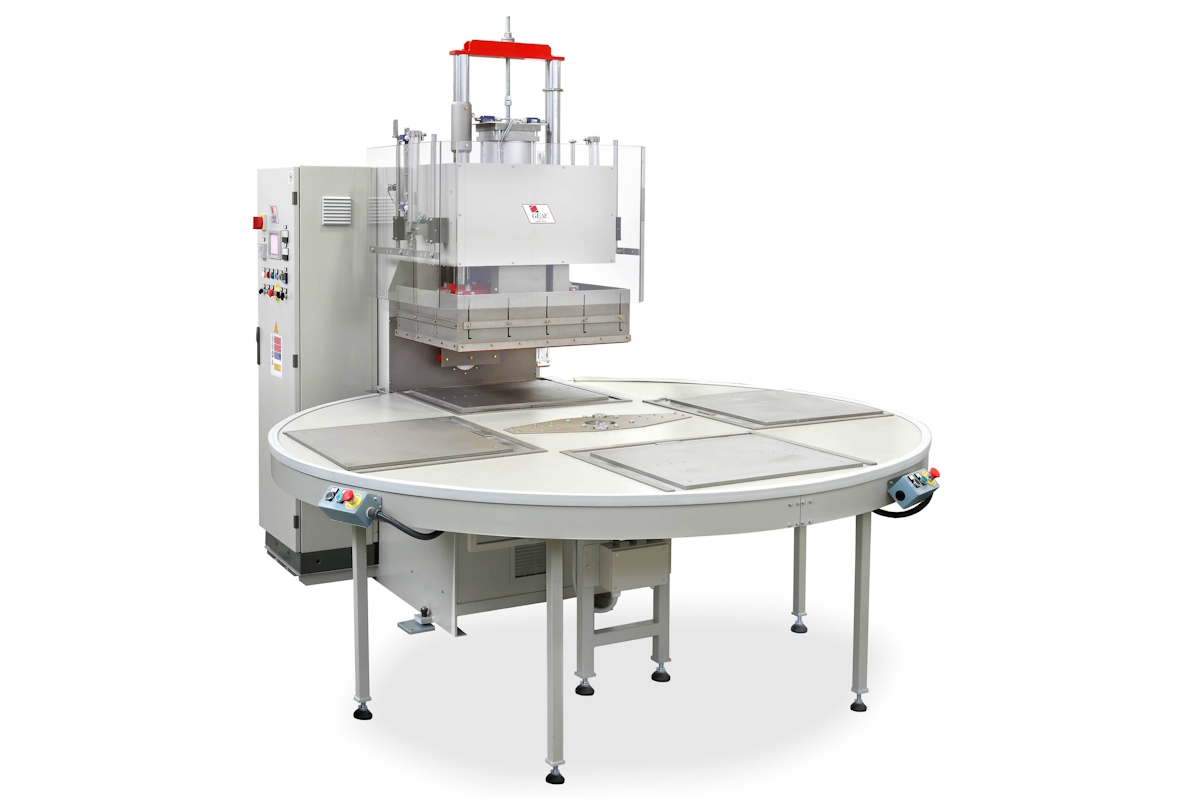

GMA-D 4 or 6 stations IV (intravenous) bags RF

back to MEDICAL SECTOR

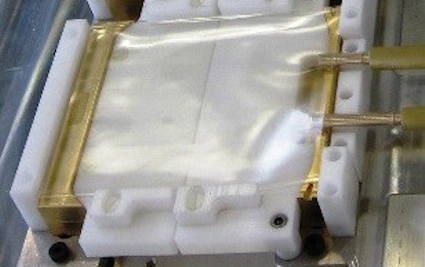

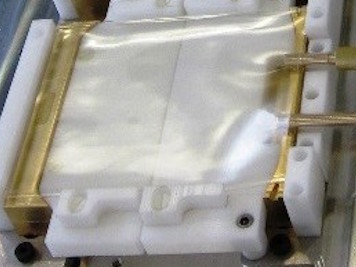

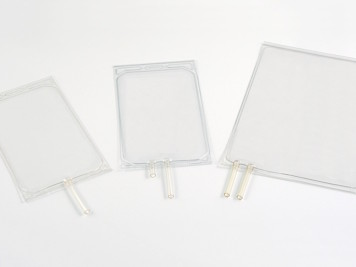

For the production of solution bags in PVC film

  • High Frequency welding press pneumatically, hydraulically or with servo-motor operated
  • High frequency generator built in the press frame
  • Turntable with 4 or 6 working station with adjusting turning speed
  • Control panel with PLC and touch screen

Technical sheet

Welding press maximum closing force (adjustable):1600 kg / 2500 kg
Welding press electrode-holder plate dimension:700x800 mm / 700x900 mm
Turntable working stations dimension:700x800 mm / 700x900 mm
Output power of the generator:12 kW / 15 kW / 20 kW
Feeding voltage (on demand other voltages):400 V (+/- 5%) – 3 PHASES + EARTH - 50 Hz
