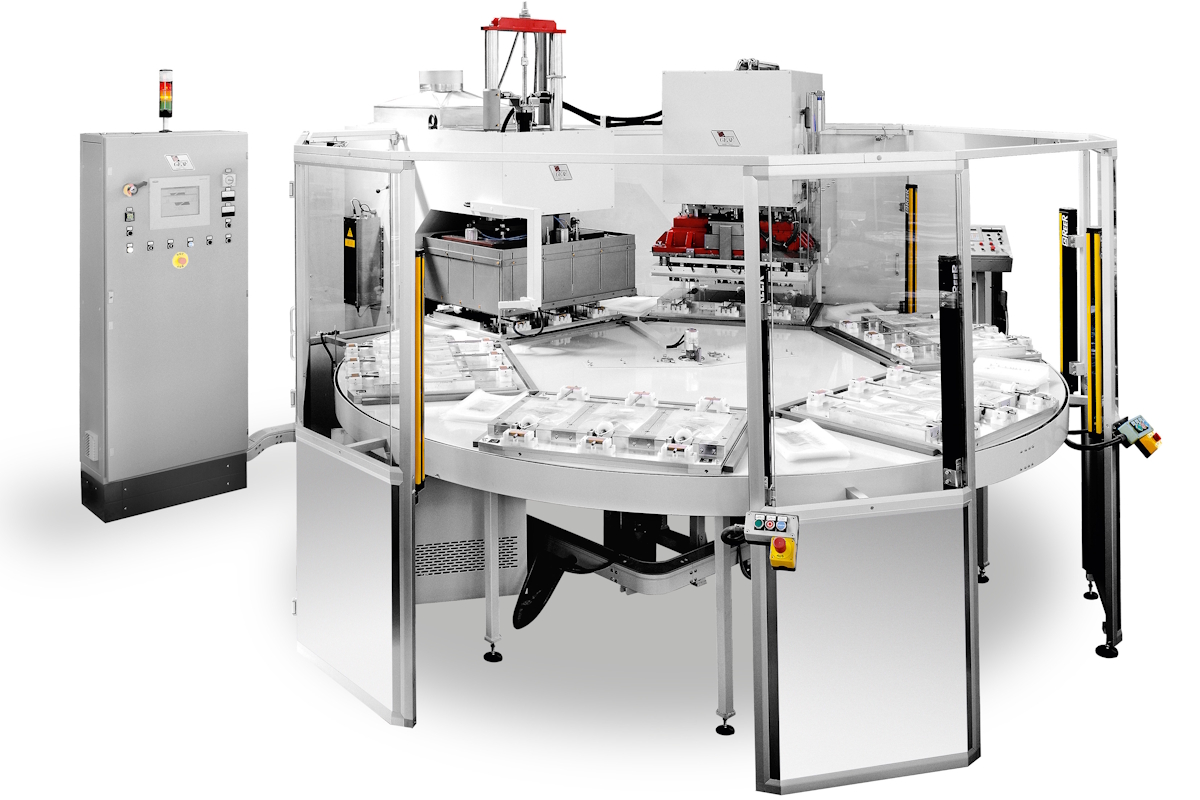

GMA-D + PDT 6 stations Plasma bags

back to MEDICAL SECTOR

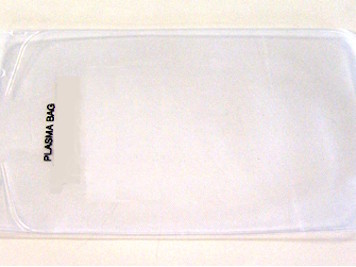

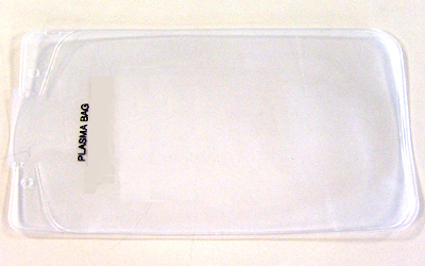

For the production of plasma bags in EVA film

  • High frequency welding press hydraulically operated
  • High frequency generator built in the press frame
  • Cutting press hydraulically operated
  • Turntable with 6 working stations and adjustable rotating speed
  • 2 Hydraulic power pack
  • Working stations and welding press refrigerating with liquid circulation (on demand)
  • Control Panel with PLC and touch screen

Technical sheet

Welding press maximum closing force (adjustable):2500 kg
Welding press electrode-holderplate dimension:600x800 mm
Cutting press maximum closing force (adjustable):10000 kg / 20000 kg
Cutting press punch-holder plate dimension:600x800 mm
Turntable working station dimension:600x800 mm
Output power of the generator:15 kW / 20 kW
Feeding voltage (other voltages on demand):400 V (+/- 5%) – 3 PHASES + EARTH - 50 Hz
